Plot frequency#
# Author: Nicolas Legrand <nicolas.legrand@cfin.au.dk>
# Licence: Apache-2.0

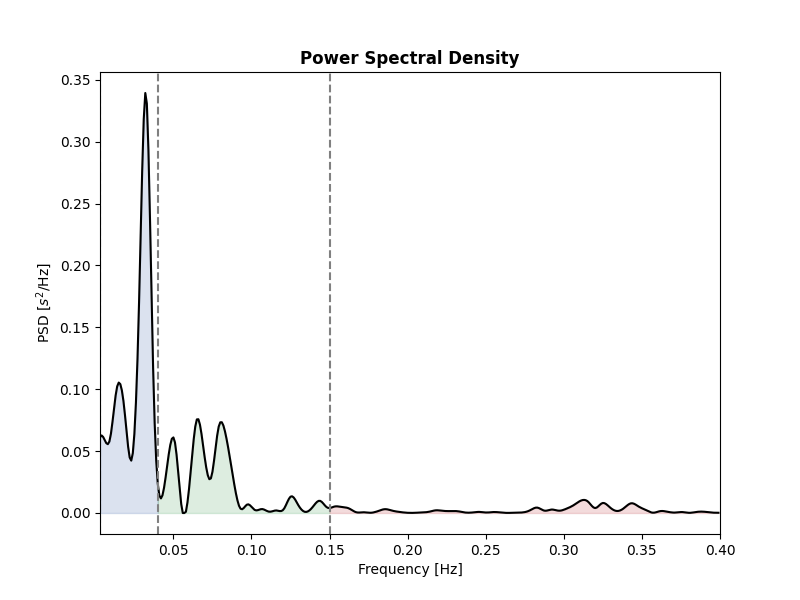

Visualizing HRV frequency domain from RR time series using Matplotlib as plotting backend#
from systole import import_rr
from systole.plots import plot_frequency
# Import PPG recording as numpy array
rr = import_rr().rr.to_numpy()
plot_frequency(rr, input_type="rr_ms")
<Axes: title={'center': 'Power Spectral Density'}, xlabel='Frequency [Hz]', ylabel='PSD [$s^2$/Hz]'>

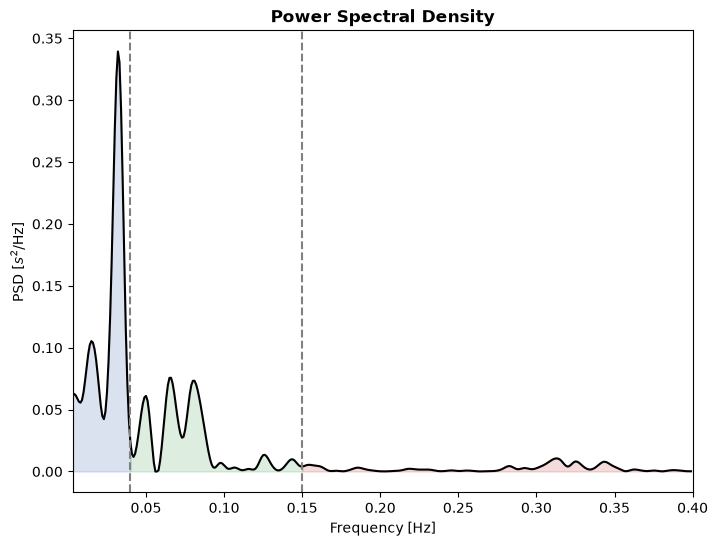

Visualizing HRV frequency domain from RR time series using Bokeh as plotting backend#
from systole import import_rr
from systole.plots import plot_frequency
from bokeh.io import output_notebook
from bokeh.plotting import show
output_notebook()
show(
plot_frequency(rr, input_type="rr_ms", backend="bokeh")
)
